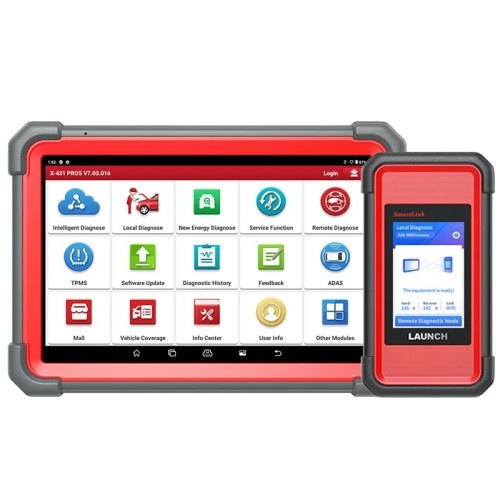

Tester Launch x431 PRO5 Model Nou 2025 cu Smartlink v2.0

Descriere

LAUNCH X431 PRO5 PRO 5 tester diagnosticare auto completa


LAUNCH X431 PRO5 :

1. Model nou 2025,  Scanerul de diagnosticare X431 produs original model nou de tableta si interfata Smartlink C
2. Suport multilingv:  engleză, franceză, spaniolă, portugheză, italiană, rusă, germană, poloneză, română, olandeză, arabă, cehă, daneză, greacă, persană, finlandeză, maghiară, suedeză, turcă, sârbă, croată, japoneză, coreeană
3. Actualizare gratuită online de doi ani.
4. Versiune actualizata a X431 V+/Pros Mini/PRO3/TURBO/Throttle
O gamă bogată de funcții sigure pentru viitor pentru lucrări productive: 1) SmartLink V2.0, Programare ECU J2534, AutoVIN și AutoScan inteligent, Teste active, Diagnosticarea tuturor sistemelor, Funcție ghidată VAG, Acces AutoAuth FCA etc.; 2) Codarea și adaptări ECU online avansate  3) Peste 50 de funcții de service cu actualizări mai frecvente pentru a sprijini mai multe vehicule.
5. SmartLink  -- Conector multifuncțional
1) Se pot testa marea majoritate a vehiculelor la nivel OE; respectă standardele SAE pentru J2534-1 & -2, CANFD, DOIP și suportă DC9-36V pentru vehicule HD; 2) de asemenea se poate folosi ca un VCI wireless. Pentru cei mai pretentiosi se poate utiliza ca device Passthru cu softuri OEM:Odis, JLR, Mercedes Xentry, Toyota Techstream, Honda HDSm Opel GDS2 etc
6. Acoperire auto la nivel OE:  peste 100 de mărci de mașini, peste 20.000 de modele de pe piețele auto din SUA, Europa și Asia; încă în expansiune.
7. Diagnosticare inteligentă, AutoVIN și AutoScan efectueaza scanări DTC pentru toate sistemele, care durează în medie < 3 minute.
8. Test activ bidirecțional complet,  testați eficient componentele mașinii la cerere.
9. Acces FCA AutoAuth. Ocoliți SGM în vehiculele FCA fără probleme și în câteva secunde; funcționează pe Chrysler, Dodge, Jeep, Alfa Romeo, Fiat din 2017 și mai noi. *Necesită abonamente AutoAuth (50 euro pe an).
10. Funcția ghidată VAG. Omiteți procedura de rutină de introducere a codului de acces de securitate și a numărului de canal pentru vehiculele VW, Audi, Skoda, Seat.
11. Adăugați module pentru a extinde caracteristicile:  ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; Tester de baterie Bluetooth BTS360; Imobilizator X-PROG și X-PROG3.
12. Kit de conectori și cabluri fără 16 pini,  care permite funcționarea pe diferite vehicule din întreaga lume.
13. Orientat către utilizator – Actualizări software cu o singură atingere. Feedback online 24/7; salvați, înregistrați date și generați automat rapoarte pentru a le partaja prin e-mail; Flux de date grafice live pe 12 canale afișat într-un singur ecran cu max. 4 fluxuri pot fi îmbinate; meniu în 25 de limbi.
14. Hardware puternic. Sistem de operare Android 10, procesor cu 8 nuclee de 1,8 GHz, 4 GB RAM și 64 GB ROM, ecran tactil

HD de  10,1” HD 1920*1200, cameră spate de 8 MP și cameră frontală de 5 MP, baterie de capacitate mare, etc.



Acest scaner de diagnostic LAUNCH poate stabili o legătură de date către toate sistemele și subsistemele vehiculului:

1) Preluarea informațiilor ECU, inclusiv tipul unității, numerele de versiune și alte specificații, etc.
2) Citiți și ștergeți DTC-urile pentru a localiza zonele cu probleme și șterge codurile.
3) Vizualizați datele live ale fiecărui element de parametru.
4) Acest proces cuprinzător de scanare este capabil să localizeze sistemele defecte și să recupereze cu ușurință DTC-urile asociate. Astfel, puteți lucra asupra tuturor sistemelor vehiculului pentru a îmbunătăți performanța, a economisi energie, a reduce emisiile și orice altceva.


Peste 50 de servicii de întreținere de resetare la cald și reînvățare

Puteți alege cu ușurință mai multe funcții de service utilizate în mod obișnuit, urmați instrucțiunile clare și precise ale acestora pentru a finaliza proiecte complexe mult mai rapid, incluzând, dar fără a se limita la următoarele:
-Resetarea luminii de întreținere a uleiului: resetați lampa de serviciu de ulei; recalculați intervalul optim de schimbare a uleiului.

- Resetarea unghiului de direcție: resetați unghiul de direcție la zero pentru a menține mașina să funcționeze drept.
- Codarea injectorului: scrieți noul cod al injectorului în sistem pentru a corecta cantitatea de injecție în cilindru.
- Resetare electronică a frânei de parcare: ajută la înlocuirea și resetarea plăcuței de frână.
- ABS: Bleding ajuta la evacuarea aerului din sistemul ABS într-un mod simplu.
- Potrivirea accelerației: inițializați actuatoarele de accelerație la starea implicită.
- Potrivirea bateriei: înregistrați bateria după înlocuire.
- Regenerare DPF: ajută la eliminarea particulelor pentru a menține capcana stabilă.
- Potrivire antifurt (serviciu IMMO): dezactivați cheile pierdute pentru a preveni furtul mașinii și adăugați chei noi. *Limitat implicit; poate fi actualizat complet cu X-PROG și X-PROG3.
- Resetarea presiunii în anvelope: resetați presiunea în anvelope.
- Calibrarea nivelului suspensiei:reglați senzorul de înălțime a caroseriei vehiculului pentru calibrarea nivelului.
- Potrivirea farurilor: inițializați sistemul de faruri adaptive.
- Potrivirea cutiei de viteze: ajută la finalizarea auto-învățării cutiei de viteze pentru a îmbunătăți calitatea schimbătorului de viteze.
- Inițializare trapă: inițializați trapa când trebuie blocată sau închisă.
- Tooth Learning: ajută la finalizarea învățării distributiei după schimbarea arborelui cotit al motorului mașinii.
Și multe altele. Meniurile de funcții variază în funcție de producător, an și model. Contactați-ne pentru verificarea compatibilității.

NOTĂ: *Explorați mai multe funcții de service accesând meniurile „Marcă vehicul -> Diagnosticare sistem -> Funcție specială”.

Descriere completa in engleza:

LAUNCH X431 PRO5 PRO 5 Car Diagnostic Tools Automotive Tool Full System



LAUNCH X431 PRO5 Highlights:


• NEW! With new SmartLink C 2.0 Passthru. Dual diagnosis mode (local diagnosis and super remote diagnosis)
• NEW! Adds Topology Mapping function since version V7.03.014
• 2024 New Arrivals, NO IP limited, The genuine X431 diagnostic scanner officially authorized from LAUNCH; no IP restrictions.
• Multilingual Support: English, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian, Japanese, Korean
• Two Years Free Update Online. After 2 years, you can buy the One Year Update Service or Two Years Update Service
• Upgraded from X431 V+/Pros Mini/PRO3/TURBO/Throttle: A rich array of future-proof functions for productive works: 1) Smartlink 2.0, J2534 ECU Programming, Intelligent AutoVIN & AutoScan, Active Tests, All System Diagnostics, VAG Guided Function, FCA AutoAuth Access, etc.; 2) advanced Online ECU Coding & Adaptations brings more personal settings; 3) 50+ service functions with more frequent updates to support more vehicles.
• OE-level Car Coverage: 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
• Intelligent Diagnostics, AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
• Full Bidirectional Active Test, Effectively test car components on demand.
• FCA AutoAuth Access. Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
• VAG Guided Function. Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
• Add Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN; BTS360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer.
• Non-16pin Connectors & Cables Kit, enable to work on varied vehicles across the world.
• User-Oriented – One-touch software updates. 24/7 online feedback; save, record data, and automatically generate reports to share via email; 12-channel graphic live data stream displayed in one screen with max. 4 streams can be merged; 25 languages menu.
• Great Combination. Android 9.0 OS, 8-core 1.8GHz processor, 4GB RAM & 64GB ROM (128G expandable), 10.1” HD 1920*1200 touchscreen, 8MP rear & 5MP front camera, 7000 mAh battery, etc.
• Optional truck diagnose (you will need to purchase the Smartlink C2.0)
• Supports ADAS Calibration when working with an ADAS Mobile / ADAS PRO.
• May 2024: Available to purchase Europe Professional Software License Pack in Mall (Check- How to Purchase)

New Pro5 Smartlink vs Old Pro5

New Pro5 comes with Smartlink C 2.0 passthru VCI which supports dual diagnosis mode: local diagnosis and super remote diagnosis. Smartbox only local diagnosis.


NOTE:

*Online programming is restricted in Spain, and Portugal.
*Super remote diagnosis requires extra license. The license will be available in May or June 2024.

Expand Your Business (Need Buy-Extra):

This LAUNCH X431 scanner can be combined with compatible functional modules (sold separately) to meet your various diagnostic scenarios:
1) ADAS Calibration Toolkit: calibrate driver assistance systems;
2) VSP-600 VideoScope: inspect areas inaccessible;
3) X431 i-TPMS: full-capacity TPMS functions;
4) BTS360 Bluetooth Battery Tester: test battery in-vehicle or out-of-vehicle;
5) X-PROG3 Immobilizer: advanced key programming & IMMO service.
6) X431 Heavy Duty License& Adapters: Working together to support cars and trucks
7) EV Diagnostic Kit: New Energy Diagnose
8) X431 WiFi Printer: Print diagnostic data or report for further analyzing and reviewing.
9) Launch X431 key programmer: generate/copy remote transponder functions. (Direct connection, don't need OTG converter).
10) O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits.
11) S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults
12) IMMO Software pack: advanced key programming & IMMO service. (function is available with the new Smartlink, must use with X431 XPROG-3 GIII Key Matching will expand the anti-theft function just like IMMO PLUS)



Launch X431 PRO Functions:


• Compatible with LAUNCH tools, OE tools or any other diagnostic tools
• SmartLink C can be used not only remote diagnosis but also local diagnosis by working with particular LAUNCH intelligent diagnostics
• Supports more advanced protocols like DoIP, CAN FD, CAN 2.0
• Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
• Compared with SmartLink 1.0, the SmartLink V2.0 is:

J2534 ECU Programming – Level up Your Repair Skills & Work Efficiency

As you can see, auto repair shops that need to do high-level repairs, such as replacing or reprogramming ECUs, have to cost dearly for the OEM scanners or J2534 compliant pass-thru tools. Launch odb2 scanner X431 PRO5, combined with the J2534 pass-through device Smart Box 3.0 at no charge, allows the repair shops access and program vehicle computers the same as OEM, without needing the OEM tools.

Highly Cost-Effective with Advanced ECU J2534 Programming, Same as the OEM Programming Tool: this allows you to visit the OEM website and download the OEM software for your application within several minutes through the internet.

What Can J2534 Reprogramming Tool Do?

• Program data to a new module
• Reprogram existing data to the used module
• Repair ECU with data loss
• Upgrade ECU software version
• Compatible with BMW, Benz.

Warm Tip: J2534 tool is only compatible with Windows-based computers yet.Available programming operations vary by the test vehicles.



ECU Coding: Alter the Car on Your Demand

From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power "ECU Coding" to keep you on the cutting edge:
1)You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2) You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.



Advanced FuLL Systems Diagnoses

This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

1) Retrieve ECU information including unit type, version numbers, and other specifications, etc.
2) Read & erase DTCs to locate problem areas and clear the codes.
3) View Live Data of each parameter item.
4) This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance performance, save energy, reduce emissions, and everything else.



50+ Hot Reset & Relearn Maintenance Services

You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
-Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.

-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
-Electronic Parking Brake Reset: help replace and reset the brake pad.
-ABS Bleeding: help exhaust the air in ABS system in an easy way.
-Throttle Matching: initialize the throttle actuators to the default state.
-Battery Matching: register the battery after replacement.
-DPF Regeneration: help remove the particulate matter to keep the trap stable.
-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
-Tire Pressure Reset: reset the tire pressure.
-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
-Headlight Matching: initialize the adaptive headlamp system.
-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.

NOTE: *Explore more service functions by accessing menus of “Vehicle Brand -> System Diagnostics -> Special Function”.



Key Programming (Need to work with X431 X-Prog3 to do key programming)

Key Programming : >>>>Add, Delete & Reprogram Keys, >>>Rewrite smart keys, All smart keys lost, Replace smart key ECU, Replace KNOB IGNITION;>>>>Reset Key: Relearn a key. (Note:this key programming function is NOT universally compatible .please check compatibility with us if necessary. X431 PRO 5 supports PINCode reading for most cars before 2008 ,for vehicles after 2008,you need to have PINCode to do key programming)



TPMS Programming

Activate all sensors,TPMS relearn,Program



Boost Your Efficiency

See what your car is doing in real time; get car performance, sensor data and more at one glance! This diagnostic scanner presents the live data stream in 3 modes: a. Numbers and lists (default); b. Wave patterns (max. 12 channels in one screen); c. Merged graph (max. 4 data can be merged) for you to quickly identify if the data are in normal conditions, ranges or not.

AUTOVIN--- Maximize Your Intelligence

This intelligent scanner will automatically identify the make, model, and manufacture year in one touch; help you match the right software so the diagnosis will be carried out fast and efficiently. You will also enjoy how smart it would be to record the test results as Inspection Report, being done by itself, letting you maintain vehicle health logs and share the information easily.

Active Test----Enhance Your Experience.

This X431 scan tool also functions as a bi-directional car scanner to perform specific tests and functions without using the vehicle’s own controls to save time. For example: using the diagnostic tool to command the fuel pump on. If the fuel pressure gauge shows proper fuel pressure, you’d know the fuel pump circuit and pump are functioning properly. The process just takes < 5 minutes. If test manually? Three times as long!

Guided Functions

Guiding you to be an expert in automotive diagnostic.

Compatible with Volkswagen / Audi / Skoda / Seat etc.



FEEDBACK----Take Your Guesswork Out

Any wonder about what specific diagnostic issues you may challenge? This scan tool thoughtfully offers direct access to the “Feedback” function module, which provides customized repair suggestions from LAUNCH’s certified professionals. This is invaluable to workshops attempting to fix issues of new car models that have only been on the market for a short time.



Remote Diagnosis

Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.

Health Report Generate and Share

With LAUNCH X431 pro 5, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

Printer diagnostic result

You can share car diagnostic data via email ,then print it via PC , or optional wifi , and you can order Launch x431 mini wifi printer , then one-key priner



Wide Vehicle Coverage across the Global -American Cars



Specification:

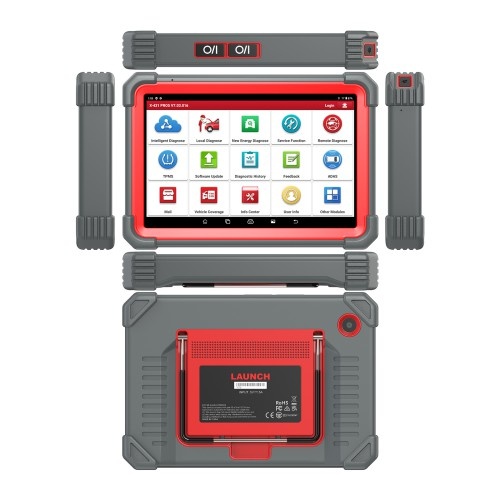

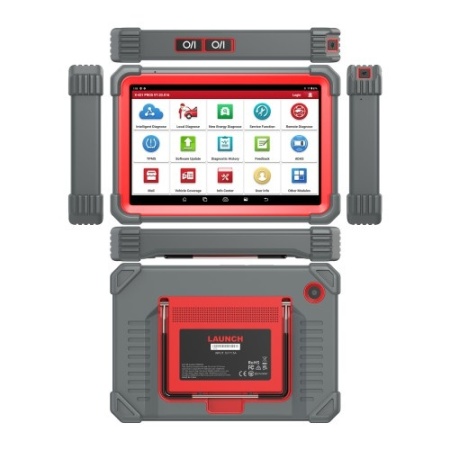

Tablet Parameters( X-431 PRO5):

CPU: 2.0GHz 4-core
OS: Android 10.0
RAM: 4GB
ROM: 64GB
Display: 10.1 inch
Resolution: 1280*800
Camera: 5MP(Front), 8MP(Rear)
Wi-Fi: 2.4GHz/5GHz （Dual frequency）
Working Temperature: 0~50℃
Size: 274 *190.5 *39.5(mm)

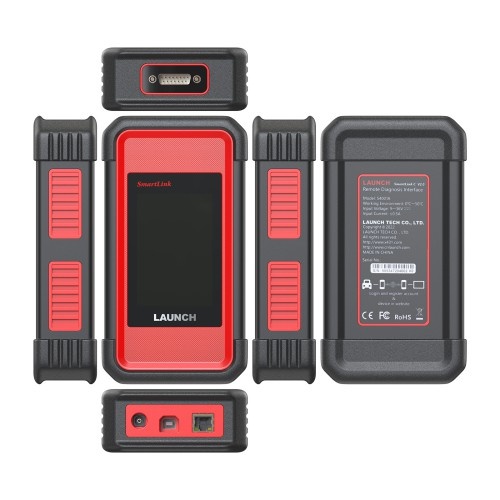

VCI Parameters(SmartLink C):

Processor: Cortex-A7+Cortex-M7
OS: Linux
RAM: 256M
ROM: 8GB
Display: 3.5 inch touch screen
Wi-Fi: 2.4GHz/5GHz dual-band
Diagnostic Communication: WiFi&BT&USB
Test Voltage: DC 9~36V
Working Temperature: 0~50℃
Size: 204*110*45 (mm)
