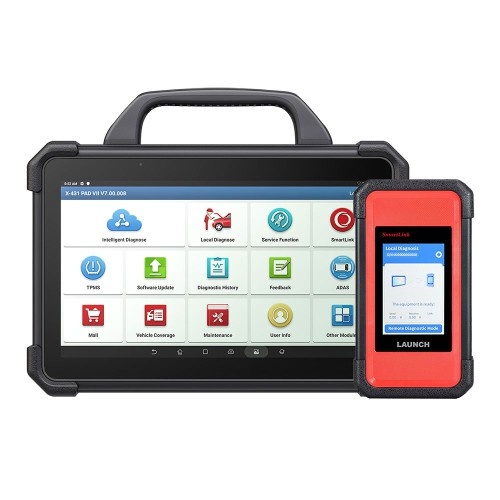

Launch original X-431 PAD7 PADVII elite Tester Auto Profesional pentru programari, codare online și calibrare ADAS

Descriere

Launch X431 PAD VII Elite este unul dintre cele mai performante si complete instrumente de diagnosticare oferit de compania Launch.

Aditional poate fi extins cu o gramada de module si pachete optionale in functie de nevoi!

Launch X431 PADVII PAD7 ,  optional programator Chei si Immo X-PROG3


 Launch X-431 PAD VII Highlights:

- Doi ani update inclus

- Este versiune globala fara limitari de IP

- Hardware optimizat Tableta mare de 13.3 inchi 2.0 GHz Octa-core chipset, Android 9.0 OS, 8GB memory & 256GB storage

- Conectivitate Wifi Duala pentru conexiune stabila si rapida

- Certificare IP65 rezistenta la umiditate si praf

- Smartlink C V2.0 VCI suporta diagnostic Remote fara nici o limitare.

- Voltaj afisat in timp real

- Mapare Topo pentru vizualizarea completa a sistemelor vehiculului

- Acces rapid a functiilor de calibrare ADAS

- Include o gramada de ghiduri de reparatii si video training

- 8 module add-on

- 60 functii de service

- Se poate extinde si ugrada cu noi module direct din  'MALL’



Launch X431 Pad VII Caracteristici:

1. Acoperire completa a tuturor sistemelor pentru vehiculer U.S., Asiatice si Europene, peste 110 branduri, ce sunt continuu updatate
2. Actualizare si expandare a X-431 PAD VII cu mai multe pachete soft si servicii prin intermediul 'MALL' oricand se doreste.

3. Afișarea tensiunii în timp real ajută tehnicianul să monitorizeze starea de tensiune a vehiculului în timpul diagnosticării

4. Maparea topologiei oferă o verificare vizuală a DTC-urilor și a stării de comunicare a tuturor sistemelor

5. Suporta protocoalele de comunicare auto CAN/CANFD/DoIP și standardele de comunicare auto J2534/D-PDU/RP1210

6. Detectează automat protocolul de comunicații al vehiculului și ajută la verificarea pinului portului OBDII auto deteriorat sau nu

7. Diagnosticare inteligentă prin identificarea automată a VIN și accesarea rapidă a sistemului

8. Funcție ghidată pentru VW și AUDI

9. Funcția opțională de calibrare ADAS  ajuta la cresterea veniturilor

10. Funcție avansată de codare și programare

11. O soluție extinsă pentru a sprijini serviciul TPMS

12. Comunicarea în bandă duală de 2,4 GHz și 5 GHz asigură o conexiune rapidă și stabilă

13. Ajuta tehnicianul să diagnosticheze vehiculele ușoare, medii și grele cu Smarlink C

14. Funcțiile de bază includ citirea și ștergerea DTC, diagnosticarea de la distanță, controlul bidirecțional, graficul de date live, actualizarea software-ului fără fir etc.

15. Modulele video de instruire și informațiile de reparare încorporate ajută la urmărirea și rezolvarea rapidă a problemei

Hardware superior face diagnosticul mai rapid ca niciodată Launch X431 PAD VII este un tester de diagnoza high-end , vine cu un ecran tactil mare de 13,3 inchi, 60 de funcții de service și
diagnoză la distanță Smartlink. Echipat cu chipset optimizat Octa-core de 2,0 GHz, sistem de operare Android 9.0, memorie 8G și
capacitatede stocare mare de 256 Gb, X-431 PAD VII vă face diagnosticarea inteligentă mai rapidă ca niciodată. Carcasa exterioară
prelucrată cu precizie este proiectată să funcționeze împotriva pericolelor din atelier, cum ar fi deteriorarea datorita apei și a prafului
în conformitate cu IP65. X-431 PAD VII utilizează o baterie de mare capacitate (aproximativ 19.000 mAh) și de mare putere pentru a asigura o durată de viață
mai lungă a bateriei, dar un timp de încărcare mai scurt. Mai mult, X-431 PAD VII îmbunătățește conexiunea dintre scaner și VCI în
conexiune „Dual WiFi”, ceea ce permite VCI să mențină o conexiune mai rapidă și stabilă în timpul diagnosticării.

Launch X431 Pad VII (PAD 7) Functii:

1. Diagnoza completa a tuturor sistemelor:

Diagnosticare puternica pentru toate sistemele (diagnosticare inteligentă, diagnosticare la distanță, citire DTC, ștergere DTC, citire flux de date, test de acționare), date de diagnosticare precise și funcții speciale abundente.
Diagnosticare locală: când diagnosticul inteligent nu este disponibil într-un mediu fără rețea, alegeți diagnosticul tradițional. Selectați manual marca și modelul vehiculului pentru a efectua detectarea vehiculului.
Afișarea tensiunii în timp real ajută tehnicianul să monitorizeze starea de tensiune a vehiculului în timpul diagnosticării
Diagnosticarea inteligentă permite identificarea automată a VIN și accesarea rapidă a sistemului

2. 60 Functii de service:

Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change
AC System Relearn
ACC Calibration
Engine Power Balance Monitoring
GPF Regeneration
Rotation Angle Sensor Calibration
High-Voltage Battery Health Detection

More...

Introducere asupra Smartlink Remote Diagnosis

SmartLink Remote Diagnostics este o tehnologie nou-nouță de diagnosticare la distanță care leagă mai bine solicitanții de asistență la distanță cu tehnicienii profesioniști prin rolul de punte al platformei de diagnosticare la distanță SmartLink. Tehnicienii profesioniști pot efectua operațiuni de diagnosticare la distanță pe computere (cu driverul J2534 și software OEM instalat) pentru a ajuta la finalizarea diagnosticării la distanță după ce utilizatorii folosesc conectorul SmartLink C ca dispozitiv J2534 Pass Thru și îl conectează la Ethernet.

3. Codare avansata ECU si codare online

J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service



4. Functia de calibrare ADAS si extinderea functionalitatii  cu 8 module.

Functia optionala de calibrare ADAS ajuta la cresterea profitului.

Ce putem face mai mult cu  Launch X431 PAD VII?

Se actualizează pentru a suporta 8 module extinse, cum ar fi videoscop, osciloscop, sensor box, instrumente TPMS, Tester de chei si baterie. Cu aceste module extinse, tehnicienii au posibilitatea de  a rezolva cu ușurință defecțiunile de nivel înalt, Aceste module extinse sunt optionale contracost.


5. Mai multe functii avansate:


Acoperire a softwareului:

Vehicule auto:

1. Australian:  AUST Holden, AUST Ford

2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep

5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

7. Others: EOBD, Demo

Camioane, autobuze si utilaje (Optional):

Software Coverage:

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Funtii speciale puternice:

Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

Launch X-PROG 3 Programator chei si immobilizator
Caracteristici:

1. Compatibil cu Launch din seria X-431, X-PROG 3 permite citirea/scrierea EEPROM, MCU,  și cipuri BMW CAS4+/FEM, chei cu infraroșu Mercedes-Benz, generarea de chei speciale, citirea codului ISN al motorului BMW.
2. Mărci acceptate: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA etc. Mai multe modele continuă să fie actualizate.
3. Sisteme acceptate: Transmisie automată, Instrument cluster, CAS, Body system, Sistem de blocare etc.
4. Compatibil cu: X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X -431 PAD VII
5. Citește și scrie majoritatea ECU-urilor pentru motor/cutie de viteze fără a demonta carcasa

Descriiere completa in engleza:

Launch X-431 PAD VII Elite PAD 7 Full System Diagnostic with Smartlink C Support Online Coding and Programming

Launch X431 PAD VII Elite is an unexpected high-end professional diagnostic tool with LAUNCH Innovation technology, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions such as videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types. X431 Pad V offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software.


Launch X-431 PAD VII Elite Highlights:

- Two Years Free Update Online. Car software One Year& Two Years Update; Truck software update fee is 535EUR/year
- This is Global Version Without IP Limitation
- Multi-Language Supported: English, German, Italian, French, Spanish, Portuguese, Swedish, Croatian, Polish, Czech, Russian, Greek, Dutch, Thai, Finnish, Danish, Romanian, Japanese, Arabic, Persian, Hebrew, Chinese, Korean, Turkish.
- Optimized 2.0 GHz Octa-core chipset, Android 9.0 OS, 8GB memory & 256GB storage
- Dual WiFi connectivity for maintaining faster and stable connection
- IP65 waterproof & dustproof
- Smartlink C VCI supports remote diagnosis without being on-site and the limitation of diagnostic functions, tools and vehicle types.
- Real-time voltage display for voltage condition monitoring
- Topology mapping for visible checking on full vehicle system
- Quick access ADAS calibration features
- Numbers of built-in repair guidance & training videos
- 8 add-on modules
- 60+ service functions
- Expand & upgrade your scanner via new module  'MALL’
- Launch X431 PAD VII supports truck diagnosis, you need buy the heavy duty license, and we will open the license for you and send a free set of truck cable to you
- With Free Gift Launch CRP123X



Supports Extended Function Modules:


• Launch motorcycle connector kit: For diagnose motorcycles
• X-431 Wi-Fi Printer: print out diagnostic data & reports.
• VSP-600 VideoScope: for up-close visual inspections in confined areas.
• X-431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.
• BTS360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.
• Truck software: Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
• S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.
• O2-2 ScopeBox, Oscilloscope: quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.
• X-PROG & X-PROG3 Immobilizer: for key programming & IMMO service.  Clone Mercedes Benz ECU 2015 upwardss
• Buy  Launch X431 X-PROG 3+ IMMO Function Service X431 PAD VII Elite will have the same immobilizer function as X431 IMMO Plus or IMMO Elite.
• Launch X431 EV Diagnostic Upgrade Kit : Supports New Energy Battery Diagnostics.  Includes activation card and adapters for specific electric vehicles to perform battery pack analysis. Can diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.
• Launch X431 Key Remote Maker Able to read Transponder, Generate Launch super chip and universal remote keys, Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Launch super chip and universal remote key
• ADAS software Calibration: Advanced driver assistance systems, or ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
• Smartlink C supports remote diagnosis (needs activation card) 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.

BULLET POINTS:

Meet LAUNCH X431 PAD VII Elite: The phenomenal all-in-one diagnostic scanner, the newest upgraded scan tool of ProS V, V+, PAD III/V in X431 series. All set to top-notch standards to make your ECU Programming/Coding, 35+ Reset Services, 60+ Special Functions, Active Test, All System Diagnostics, Topology Mapping, DTC Troubleshooting Guidance, OBDII Connector Pin Detection, etc. accurate, efficient and OE-level approved. Together with worldwide car coverage of 110 brands (J2534/RP1210/D-PDU/CAN/DOIP/CAN FD) + 30 days unconditional return & replacement policy + 1 years product quality backup.

J2534 ECU Programming: This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. Available for VAG Group Vehicles, Benz, BMW, and Porsche etc, without use of often very expensive factory automotive scan tools. **Reach us for details.

ECU Programming & Coding: This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or reflashing modules to active features / deactivate hidden features, without use of often very expensive factory automotive scan tools. **Reach us for details.

Support Latest Car Protocols: To diagnose the complex issues for passenger cars and even trucks, SmartLink CVCI Box is developed as a smart solution to support wide array of diagnostic protocols (J2534/RP1210/D-PDU - for passenger cars and commercial vehicles; CAN/DOIP/CAN FD - the latest protocols), covering U.S., Asian and European markets over 110 brands, and is continually updated. You may go to the “MALL” module to make in-app purchase of HD vehicle software.

OE-Level Diagnostic Tool: 35+ Reset & Relearn Services (Oil Reset, Injector Coding …) for necessary repairs and adjustments in workshop; 60+ Advanced Special Functions (PMI, Power Balance, Online Calibration, Online Account Login Service …) for complete diagnostics to help grow customer base. Meanwhile, 8 extended modules include Videoscope, Oscilloscope, SensorBox, TPMS Tool, Key Immobilizer and Battery Tester. This pro-level diagnostic scanner has everything to meet your various diagnostic needs and scenarios. **See details on page.

User-Oriented Diagnostic Scanner ①Factory-level All System Diagnostics: in-depth inspection of all accessible car modules as ECM, transmission, ABS, airbag, EVAP, TPMS, BMS, etc. to troubleshoot complex manufacturer-specific issues; ②Topology Mapping: check DTCs and all systems communication status visually. ③Merged 4-in-1 Live Data Graph: effortlessly detect problems during a test drive; ④Auto-detects the communications protocol; check OBDII connector pin damaged or not.

Great Combination: Based on Android 9.0 O.S, powered by fast 2.0GHz Octa-core optimized chipset, with visually stunning 13.3” 1920*1080 touchscreen, 2.4/5Ghz dual Wi-Fi connection, 32GB+128GB expandable on-board memory, 9360mAh battery (20+ continuous work), AutoVIN & AutoSCAN (2006+), one-touch one year software upgrade (no charge), massive built-in repair materials, etc., this 2021 newest diagnostic tool of LAUNCH X431 line makes your intelligent diagnosis faster than ever.

Superior Hardware Make Diagnosis Faster Than Ever

Launch X431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.


Launch X431 Pad VII Elite (PAD 7) Functions:

1. ALL System Diagnosis

Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly



2. Revolutionary Topology Module Mapping + 60+ Advanced Maintenance Services + 35+ Reset & Relearn Services

Revolutionary Topology Module Mapping

• It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems’ calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

35+ Reset & Relearn Services

Cover the majority of makes and models worldwide up to 2019/2020/2022 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.



Smartlink Remote Diagnosis Introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.



3. Advanced ECU Coding and Online Coding

Reliable ECU Data Backup, Faster Recovery & Less Downtime

• When customizing your vehicle, there is always a question: will it be able to revert the changes in case of human error, system failure, or data loss that bricks the vehicle computer?
• This is where the “Backup/Recovery ECU Data” function can prove to be very useful.
• Unlike traditional car scanner backup methods that can be labor intensive and inconsistent, LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU programming & coding data.
• It allows you to make a copy of your current Coding, Adaptations, and other info (such as Advanced ID and Live Data) of a selected control module, and save them as a file into your scan tool as a backup.
• To restore coding or programming values, just select the backup file you need and you’ll effortlessly get reverted back to the old settings/coding in a control module.
• For now this function is compatible with Ben.z all series, and B.M.W F/G/I chassis.
• **NOT universally compatible. Function menus may depend on vehicle’s make, model and year.

Programming Online for Benz & BMW, Save Your Labor Greatly

• LAUNCH stores the Benz & BMW’s massive programming data in the cloud, rather than relying solely on a hard drive, so you won't lose access if something happens to your hard drive.
• More, LAUNCH PADVII saves time to guide your programming directly. Unlike any scan tools before, it practically anticipates your next move by guiding you through every step you need to find the solution patch while avoiding the steps you don’t, within a highly intuitive user interface that’s simple to learn and operate.
• With this automatic Online Programming, you’ll have the confidence to tackle more challenges than ever before. The only requirements are a stable & solid internet connection, and an external battery charger for your successful operation.

>> Can I use the diagnostic tool to program Au.d.i, VW, Porsche … besides Benz and BMW?

• Answer: Yes, provided you have installed, downloaded the manufacturer’s programming software, and paid for the valid subscription.
• With SmartLink C VCI Box (compatible with J2534-1 & -2; value of 2000+ bucks), you can cost-effectively add new OEM applications for 30+ car brands, with no need to purchase separate, expensive OE scan tools for each brand.

>> What happens if I don't program a new ECU after installing it on my car?

• Answer: Nothing will happen, because the system doesn't know how to react, since the PROM that governs the circuits of ECU “what to do” is blank.
• It cannot command the injectors to open or the coil(s) to fire. It cannot command the fuel pump to send fuel. It cannot read the external temperature, or even the temperature of the coolant, because there are no instructions defining what is hooked to the ECU, and there is no information to tell the system when to open the injectors, or for how long.

4. ADAS calibration Function and Extend 8 Module Functions

Optional ADAS calibration function increases more revenue.



What matters more for Launch X431 PAD VII?

It upgrades to support 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice



5. More Advanced Functions:

FCA Secure Gateway

LAUNCH X431 PAD VII ELITE automotive diagnostic scanner provides a trustworthy authority for technicians, car dealers, automotive engineers, and service shops to undo the SGW and perform all the necessary repair procedures.

Active Test / Bidirectional Control

LAUNCH X431 PAD VII ELITE performs the active test, which bypasses the onboard control systems to send commands to modules to perform specific tests. By monitoring their responses, you can precisely locate the faults, and shorten the troubleshooting time without tearing the vehicle apart. It can:

• Rolling up / down a window;
• Turning the fuel pump on and off;
• Cycling the a/c clutch on and off;
• …

Pin Detection

This module allows you to detect the voltage of the vehicle OBD II diagnostic socket pins and the supported protocol types to help technicians judge the OBD II diagnostic interface.

Note: Before performing this function, please make sure that SmartLink C is properly connected to the vehicle’s DLC port.
