CGDI FC200 Programator ECU versiune full

Descriere

Unul din cele mai puternice programatoare ECU de la producatorul CGDI

Fără sa desfaceti ECU, fără perforare, păstrați piesele originale, suporta  4200 de tipuri de ECUS / EGS, implicând 80% din modelele de pe piață.
Versiunea actualizata  a AT200, cu toate licențele activate și actualizarea gratuită online timp de un an.

CG FC200 ECU Programmer Full Version



FC200 Highlights:

1. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.

2. Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

3.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

4. ISN Read and Write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.
Check FC200 BMW ISN Read and Write List

5.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
Check FC200 Support ECU List

8. For Checksum Function, Please Check FC200 Support Checksum List for Reference.

9. There are 3 Operating Modes: CAN-BUS, Bench Mode and Boot Mode

10. Multi-Language: English, French and Simplified Chinese
For Spanish, Polish Turkish and Traditional Chinese, will need to pay $130 Language Change Service to get authorized seperately with serial number.

11. Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
Need to buy extra FC200 MPC5XX Adapter

12. Full Version with All License Activated.
Free Update Online for One Year. Annual Fee will be $200/year after the first year.



Notice:
FC200 Software Free Download Link, please download here when you get the package.
Here is User Manual for your reference too.

FC200 Software Features:

1. Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.




2.Built-in Model Search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.

ECU Search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
Bosch Number Search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525".
Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

3. Intuitive Wiring Diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.




FC200 Model Support:

Support 4200 kinds of ECUs, involving 80% of the models on the market.

European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra




CG FC200 Latest Update Information:

FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance

FC200 V1.1.4.0 Registered Version  NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues

V1.1.3.0  Registered Version NEW (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes

CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1. Setup interface adds-Server Selection function
2. Optimize the device activation interface (add the "Activate" prompt)
3. Repair the failure problem of the Bosch query abroad
4. Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5. New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6. New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7. New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8. New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9. Newly modified VIN model: MED 17.8.3

CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance

FC200 ECU Programmer Wiring Diagram:

For Volkswagen ME17.5.22-TC1724:


For BMW N20 MEVD17.2.9-TC1797:

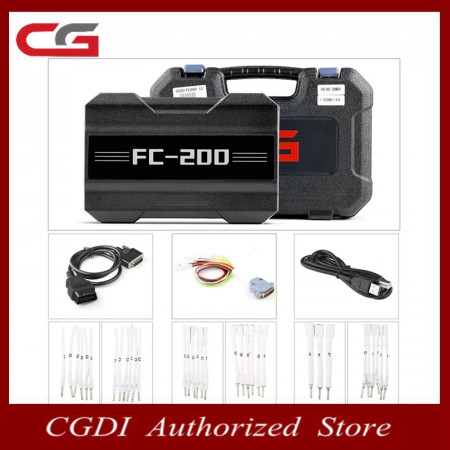

FC200 ECU Programmer Hardware:

FC200 Main Unit

1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification



2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments



3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.



FC200 Adapters

1.Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.



2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation



3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS



OBD2 Cable

FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable
