Tester profesional DAF VCI-560 MUX Tester Profesional Camioane DAF

Name: Tester profesional DAF VCI-560 MUX Tester Profesional Camioane DAF
Brand: EU Producer ltd
SKU: DAF VCI-560
Price: 9800 RON
Availability: InStock

12.000,00 RON (Reducere 18%)

9.800,00 RON

Costurile de livrare nu sunt incluse

Disponibil in 5-7 zile de la comanda

Cod produs - SKU: DAF VCI-560

Descriere

Interfata Daf VCI 560 este unitatea PROFESIONALA utilizabila inclusiv in limba ROMANA pentru camioanele DAF®. Software-ul DAVIE este construit sa comunice perfect cu toate unitatile de control impreuna cu interfata Vehicle Communication Interface (VCI). DAVIE XDc II se poate folosi prin transmisie date wireless dar si prin cablu USB. Acest kit poate fi folosit foarte eficient sa diagnosticati si sa reparati toate camioanele DAF® cu succes in cel mai scurt timp. Modul de testare directa permite selectarea imediat a unitatilor de control individuale si de testare directa pentru toate componentele si functiile lor. Diagnoza ghidata foloseste o combinatie de simptome de auto-diagnostic (memorie de erori) si simptomele observate (reclamatii/sugestii de la client), sistemul genereaza un plan de testare si ghideaza utilizatorul pe cel mai scurt drum pentru componenta suspecta a fi defecte. Modul HD-OBD permite selectarea imediata a unitatilor de control independente si testarea directa de componente si functiile lor. EOL (End Of Line) aceasta optiune se utilizeaza in statiile din zona de productie si permite programarea, calibrarea, verificarea si diagnosticarea vehiculelor noi produse. Puteti oricand comuta intre modul HD-OBD si modul EOL.

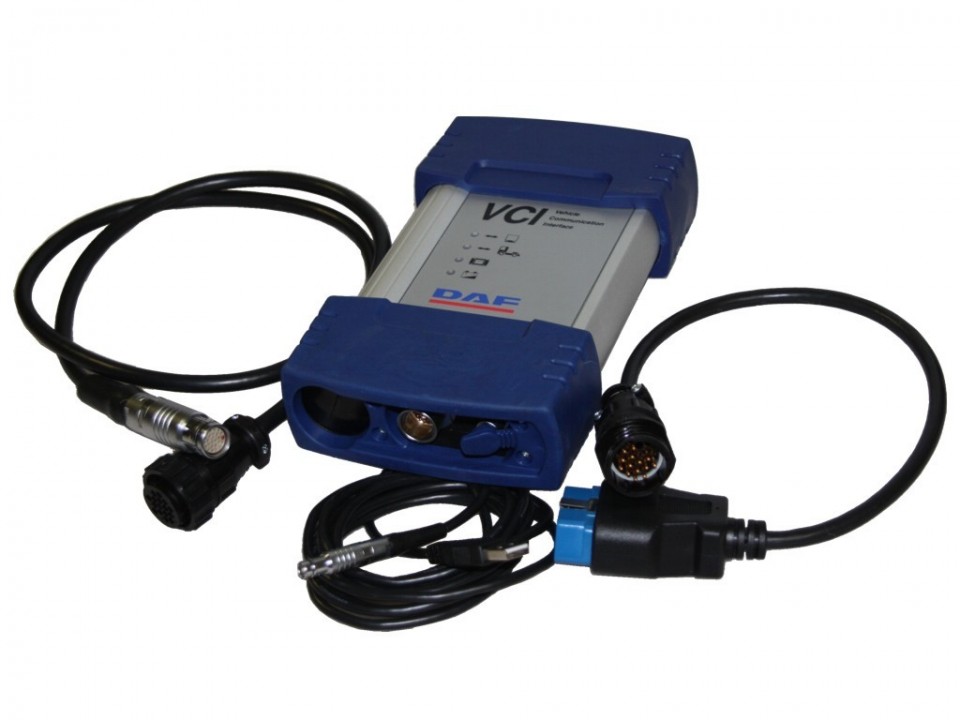

Pachetul cuprinde:

• Interfata VCI-560
• Cablu 16-pin
• Cablu OBD2
• Cablu USB

• DAF \ PACCAR DAVIE Developer Tool.

• Optional este Laptop-ul dedicat gamei DAF.

Manual si instructiuni utilizare DAF:

=> DAVIE XDc II User Manual

=> VCI Quick Start Manual

Limbi disponibile:

ROMANA, English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

ENGLISH DESCRIPTION:

The VCI-560 is a powerful fault diagnosis device that has been developed using the latest advanced technology. Used in combination with a PC, it provides a tool for quick and efficient analysis of vehicle faults.

The VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside "Diagnostic Connector".

Features:

DAVIE XDc II can diagnose, troubleshoot and program following vehicles systems:

- CAB climate system;
- Safety system;
- Security system;
- Transmission system;
- CAB climate system;
- Vehicle control system;
- Door control system;
- Instrumentation system;
- Engine system;
- Tachograph;
- Communication system;
- After treatment system;
- Break system.

VCI-560 specifications:

Dimensions (W x D x H) 126 x 214 x47 mm;
Weight 1.1 kg.

Power supply from the vehicle electrical system;
The VCI must be powered from the vehicle;
Rated voltages 8 to 32 V DC;
Current consumption in the load range Max. 1 A
If external power is interrupted, the VCI will be
buffered by the rechargeable battery;
Battery type NiMH 4,8V/1300mAh.

WiFi - optional.

Compatible software:
- DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)

- DAF Davie Application 87.20
- DAF Davie Parts Rapido Subset 17.28.F5

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.

Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.

HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.

EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.

You can switch between HD-OBD mode and EOL mode.
